| Model | Description | Resolution | Line Rate | Pixel Size | Target Size | Bit Depth | Sensor Type | Colour | Shutter | Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|
| VCI-L1GM2K2M | GigE Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
2048x2 | 48.5 KHZ | 14 μm | 28.6 mm | 8 bit | CMOS | Mono | Global | Download |
| VCI-L1GM4K2M | GigE Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
4096x2 | 27.5 KHZ | 7 μm | 28.6 mm | 8 bit | CMOS | Mono | Global | Download |
| VCI-L1GMM4K2M | GigE Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
4096x2 | 27.5 KHZ | 7 μm | 28.6 mm | 8 bit | CMOS | Mono | Global | Download |
| VCI-L1GM4K6C | GigE Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
4096x6 | 27.5 KHZ | 7 μm | 28.6 mm | 8 bit | CMOS | Color | Global | Download |
| VCI-L1GMM4K8M | GigE Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
4096x8 | 27.5 KHZ | 7 μm | 28.6 mm | 8 bit | CMOS | Mono | Global | Download |
| VCI-L1GM8K4BM | GigE Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
2048x2 | 30 KHZ | 7 μm | 57.3 mm | 10 bit | CMOS | Mono | Global | Download |
| Model | Description | Resolution | Line Rate | Pixel Size | Target Size | Bit Depth | Sensor Type | Colour | Shutter | Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|
| VCI-L10GM8K3C | 10GigE Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
8192x3(RGB) | 50 KHZ | 7 μm | 57.3 mm | 8 bit | CMOS | Color | Global | Download |
| VCI-L10GM8K2M | 10GigE Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
8192x2 | 106 KHZ | 7 μm | 57.3 mm | 12 bit | CMOS | Mono | Global | Download |
| VCI-L10GM16K2C | 10GigE Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
16384x2(Bayer) | 72 KHZ | 3.5 μm | 57.3 mm | 8 bit | CMOS | Color | Global | Download |
| VCI-L10GM16K2M | 10GigE Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
16384x2 | 72 KHZ | 3.5 μm | 57.3 mm | 12 bit | CMOS | Mono | Global | Download |
| VCI-L10GMC8K3C | 10GigE Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
8192x3(RGB) | 50 KHZ | 7 μm | 57.3 mm | 10 bit | CMOS | Color | Global | Download |
| VCI-L10GMC8K2M | 10GigE Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
8192x2 | 105 KHZ | 7 μm | 57.3 mm | 10 bit | CMOS | Mono | Global | Download |
| VCI-L10GMC8K4M | 10GigE Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
8192x4 | 109.9 KHZ | 7 μm | 57.3 mm | 10 bit | CMOS | Mono | Global | Download |
| VCI-L10GM16K6C | 10GigE Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
16384x6 | 25 KHZ | 5 μm | 81.9 mm | 8 bit | CMOS | Color | Global | Download |
| VCI-L10GM16K1M | 10GigE Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
16384x1 | 75 KHZ | 5 μm | 81.9 mm | 8 bit | CMOS | Mono | Global | Download |
| VCI-L10GM4K256M | 10GigE Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
4096x256 | 250/200 KHZ | 5 μm | 21.2 mm | 10 bit | CMOS-TDI | Mono | Global | Download |
| VCI-L10GM8K256M | 10GigE Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
8192x256 | 145/96 KHZ | 5 μm | 41.7 mm | 10 bit | CMOS-TDI | Mono | Global | Download |
| VCI-L10GM16K256M | 10GigE Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
16384x256 | 72/48 KHZ | 5 μm | 82.7 mm | 10 bit | CMOS-TDI | Mono | Global | Download |
| Model | Description | Resolution | Line Rate | Pixel Size | Target Size | Bit Depth | Sensor Type | Colour | Shutter | Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|
| VCI-L10GM4K256M | 10GigE(256-TDI) Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
4096x256 | 250/200 KHZ | 5 μm | 21.2 mm | 10 bit | CMOS-TDI | Mono | Global | Download |
| VCI-L10GM8K256M | 10GigE(256-TDI) Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
8192x256 | 145/96 KHZ | 5 μm | 41.7 mm | 10 bit | CMOS-TDI | Mono | Global | Download |
| VCI-L10GM16K256M | 10GigE(256-TDI) Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
16384x256 | 72/48 KHZ | 5 μm | 82.7 mm | 10 bit | CMOS-TDI | Mono | Global | Download |
| VCI-LCPM8K256M | CoaXPress(256-TDI) Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
8192x256 | 250 KHZ | 5 μm | 41.7x1.3 mm | 8 bit | CMOS-TDI | Mono | Global | Download |
| VCI-LCPM9K256M | CoaXPress(256-TDI) Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
9072x256 | 510 KHZ | 5 μm | 45.4x1.3 mm | 8 bit | CMOS-TDI | Mono | Global | Download |
| VCI-LCPM16K256M | CoaXPress(256-TDI) Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
16384x256 | 125 KHZ | 5 μm | 82.7 mm | 10 bit | CMOS-TDI | Mono | Global | Download |
| Model | Description | Resolution | Line Rate | Pixel Size | Target Size | Bit Depth | Sensor Type | Colour | Shutter | Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|
| VCI-LCPM16K6C | CoaXPress Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
16384x6（RGB） | 125 KHZ | 5 μm | 81.9 mm | 10 bit | CMOS | Color | Global | Download |
| VCI-LCPM16K1M | CoaXPress Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
16384x1 | 125 KHZ | 5 μm | 81.9 mm | 10 bit | CMOS | Mono | Global | Download |
| VCI-LCPM8K256M | CoaXPress(256-TDI) Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
8192x256 | 250 KHZ | 5 μm | 41.7x1.3 mm | 8 bit | CMOS-TDI | Mono | Global | Download |
| VCI-LCPM9K256M | CoaXPress(256-TDI) Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
9072x256 | 510 KHZ | 5 μm | 45.4x1.3 mm | 8 bit | CMOS-TDI | Mono | Global | Download |
| VCI-LCPM16K256M | CoaXPress(256-TDI) Industrial Line Scan Cameras | Viewsecctv Line Scan Cameras |
16384x256 | 125 KHZ | 5 μm | 82.7 mm | 10 bit | CMOS-TDI | Mono | Global | Download |
Viewsecctv line-scan camera has 256TDI technology, 256 times faster sensitivity than a regular camera, and has a 250K line frequency and a maximum 16K resolution.

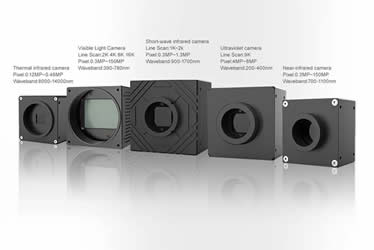

Viewsecctv Area Scan Camera have first-class image quality, and has a very high cost performance, with short-wave infrared, thermal infrared, visible light, ultraviolet series.
Viewsecctv Smart cameras well-rounded for industrial image processing.The X86 smart industrial cameras demonstrates its efficiency, accuracy, and stability.
Viewsecctv Infrared Camera, Short-wave Infrared Camera, Industrial Far Infrared Thermal lmager, Gigabit network interface, compatible with vision standard.
Nowadays, viewsecctv develops, manufactures, and sells cameras and the peripheral devices to the customers all over the world.
